Electroplating

What are the types of electroplating?


Electroplating is the process of using the principle of electrolysis to deposit a thin layer of other metals or alloys on certain metal surfaces. According to the composition of the coating, electroplating processes can be divided into eight categories: chromium plating, copper plating, cadmium plating, tin plating, zinc plating, nickel plating, gold plating, and silver plating.


Chrome plating


Chromium is a silver white metal with a slight sky blue hue. It has strong passivation performance and quickly passivates in the atmosphere, showing properties of precious metals. Therefore, the chromium plating layer on iron parts is a cathodic coating. The chromium layer is very stable in the atmosphere and can maintain its luster for a long time. It is very stable in corrosive media such as alkali, nitric acid, sulfide, carbonate, and organic acid, but soluble in hydrochloric acid and other hydrogen halide acids and hot concentrated sulfuric acid.


The chromium layer has high hardness, good wear resistance, strong reflective ability, and good heat resistance. There is no significant change in gloss and hardness below 500 ° C; Oxidation and discoloration begin when the temperature exceeds 500 ° C; It only begins to soften when it exceeds 700 ° C. Due to the excellent performance of the chrome plating layer, it is widely used as the outer layer and functional coating of the protective decorative coating system.

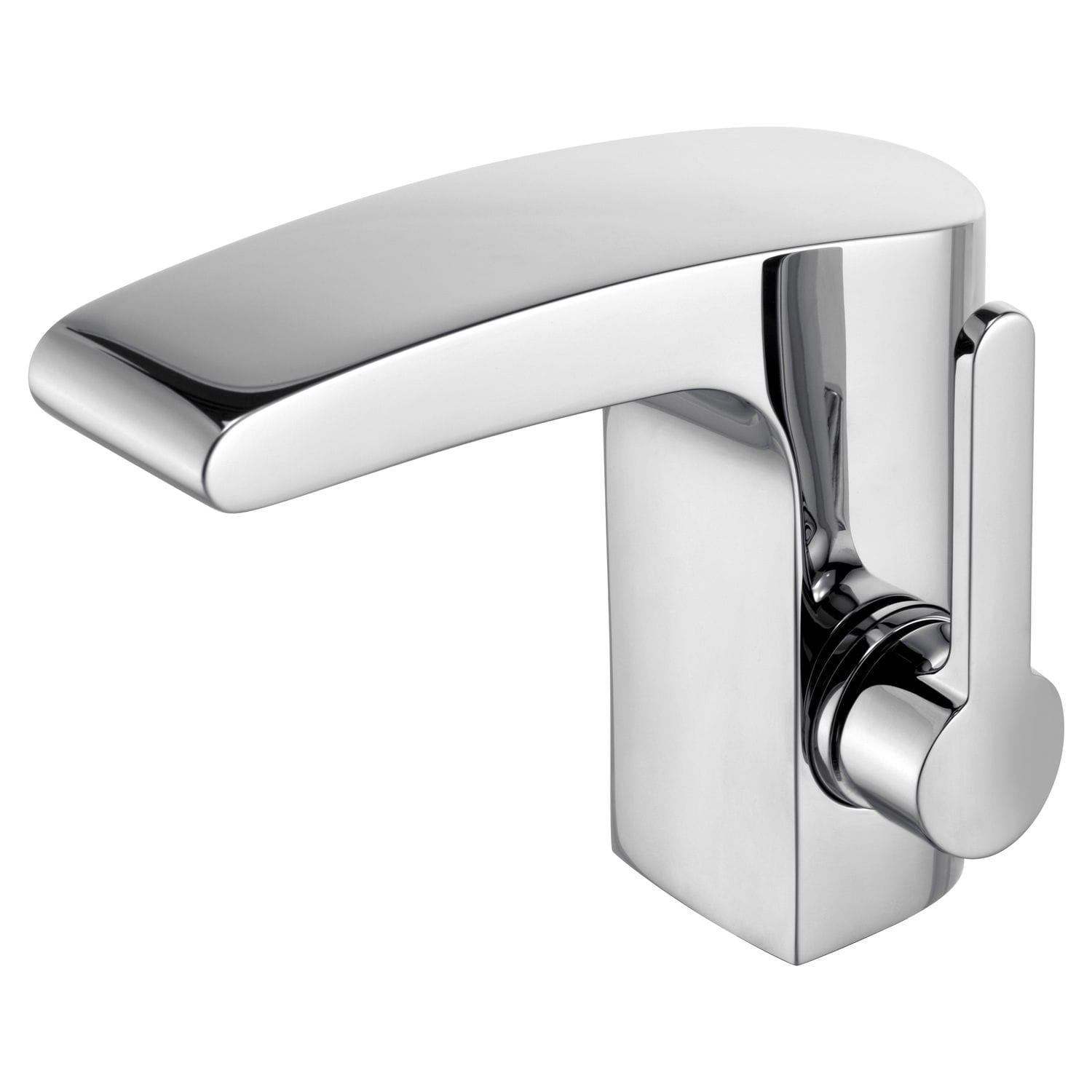

Chrome plating


Copper plating


The copper plating layer is pink in color, soft in texture, and has good ductility, conductivity, and thermal conductivity, making it easy to polish. After appropriate chemical treatment, decorative colors such as antique copper, copper green, black, and natural colors can be obtained. Copper plating is prone to losing its luster in the air and reacts with carbon dioxide or chloride to form a basic copper carbonate or chloride film on the surface. When exposed to sulfides, it can produce brown or black copper sulfide. Therefore, as a decorative copper plating layer, an organic covering layer needs to be coated on the surface.

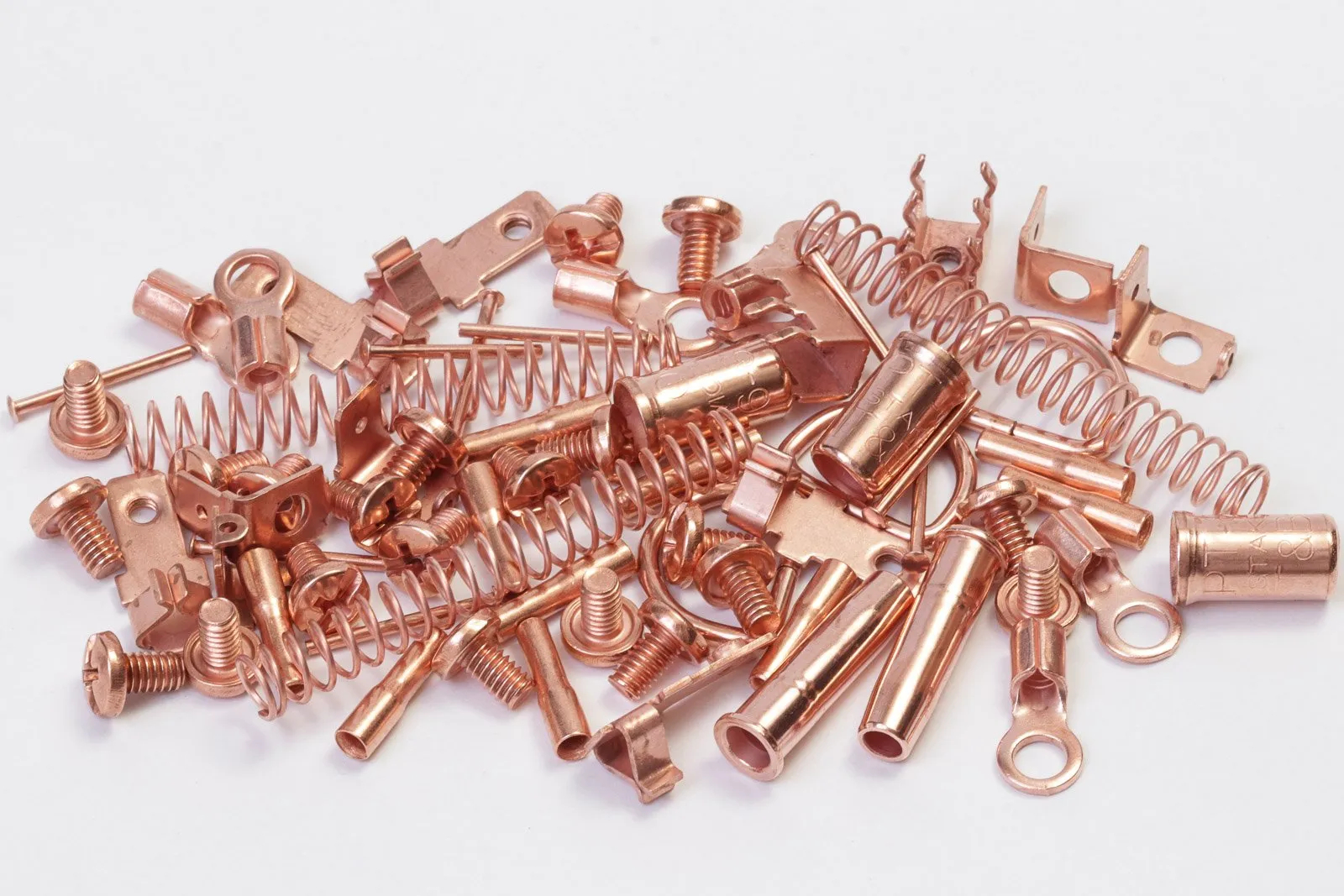

copper plating


Cadmium plating


Cadmium is a silver white, glossy, soft metal that is harder than tin and softer than zinc. It has good plasticity and is easy to forge and roll. Cadmium has chemical properties similar to zinc, but it does not dissolve in alkaline solution, dissolves in nitric acid and ammonium nitrate, and dissolves slowly in dilute sulfuric acid and hydrochloric acid. The vapor and soluble cadmium salts of cadmium are both toxic and must be strictly prevented from cadmium pollution. Due to the significant harm and high cost of cadmium pollution, galvanized or alloy coatings are usually used to replace cadmium plating. The commonly used types of cadmium plating solutions in domestic production include ammonia carboxyl complex cadmium plating, acid sulfate cadmium plating, and cyanide cadmium plating. In addition, there are also cadmium plating with pyrophosphate, alkaline triethanolamine, and HEDP.

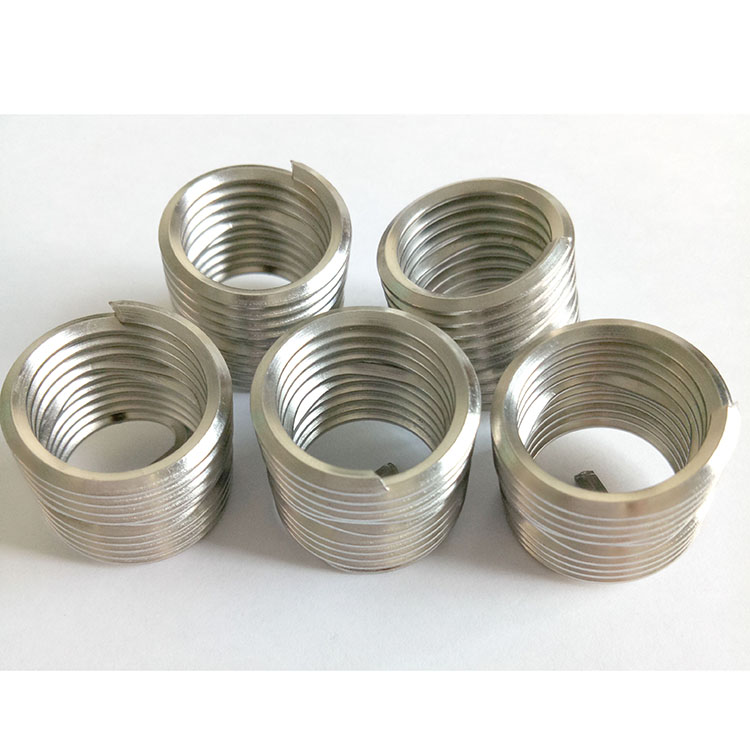

cadmium plating


Tin plating


Tin has a silver white appearance, an atomic weight of 118.7, a density of 7.3g/cm3, a melting point of 231.89 ℃, and atomic valences of divalent and tetravalent. Therefore, its electrochemical equivalents are 2.12g/A · h and 1.107g/A · h, respectively. Tin has advantages such as corrosion resistance, non toxicity, easy soldering, softness, and good ductility.


Tin plating has the following characteristics and uses:

(1) High chemical stability;

(2) In the electrochemical process, the standard potential of tin is positive, which is a cathodic coating for steel. Only when there are no pores in the coating can the substrate be effectively protected;

(3) Tin has good conductivity and is easy to solder;

(4) Tin begins to mutate when crystallized from -130 ℃, and by -300 ℃ it will completely transform into an allotrope of a crystal form, commonly known as "tin blast". At this point, the properties of tin have been completely lost;

(5) Tin, like zinc and cadmium coatings, can grow into whiskers under high temperature, humidity, and sealed conditions, known as long hairs;

(6) After tin plating, it can be re dissolved in hot oil above 231.89 ℃ to obtain a glossy patterned tin layer, which can be used as a decorative coating for daily necessities.

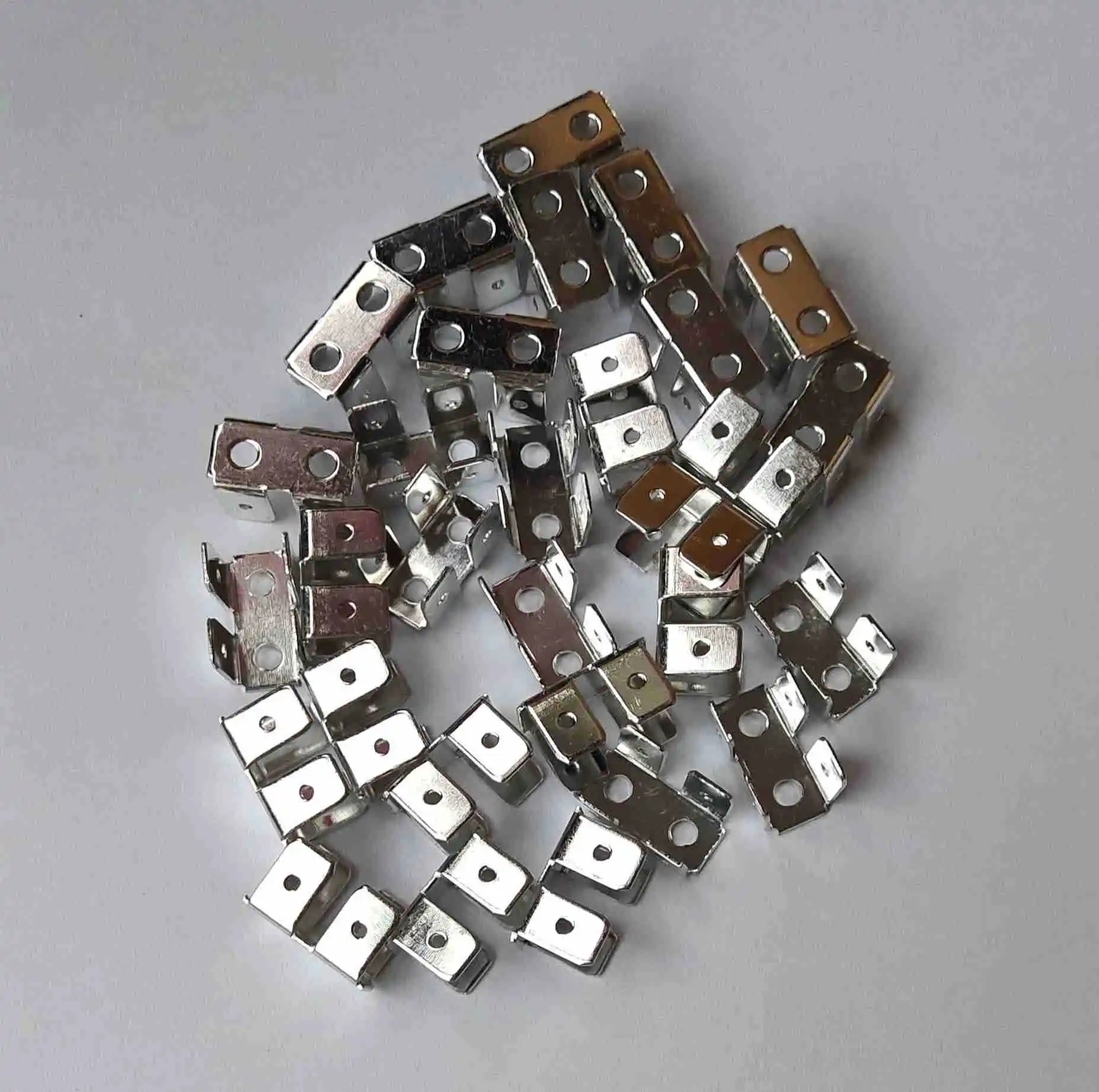

tin plating


Zinc plating


Zinc is easily soluble in acids and can also dissolve in bases, hence it is called a zwitterionic metal. Zinc hardly changes in dry air. In humid air, a basic zinc carbonate film will form on the surface of zinc. In environments containing sulfur dioxide, hydrogen sulfide, and marine environments, zinc has poor corrosion resistance, especially in high temperature and humidity environments containing organic acids, where zinc coatings are highly susceptible to corrosion. The standard electrode potential of zinc is -0.76V. For steel substrates, zinc coating is an anodic coating mainly used to prevent corrosion of steel. The quality of its protective performance is closely related to the thickness of the coating.


After passivation treatment, dyeing, or coating with protective agents, the protective and decorative properties of zinc coatings can be significantly improved. With the development of galvanizing technology and the use of high-performance galvanizing brighteners, galvanizing has moved from a simple protective purpose to a protective decorative application.


There are two types of zinc plating solutions: cyanide plating solution and cyanide free plating solution. Cyanide plating solution is divided into several categories: micro cyanide, low cyanide, medium cyanide, and high cyanide. Cyanide free plating solutions include alkaline zinc salt plating solution, ammonium salt plating solution, sulfate plating solution, and ammonia chloride free plating solution. Cyanide zinc plating solution has good plating ability, and the obtained coating is smooth and fine, which is widely used in production for a long time. But due to the high toxicity of cyanide

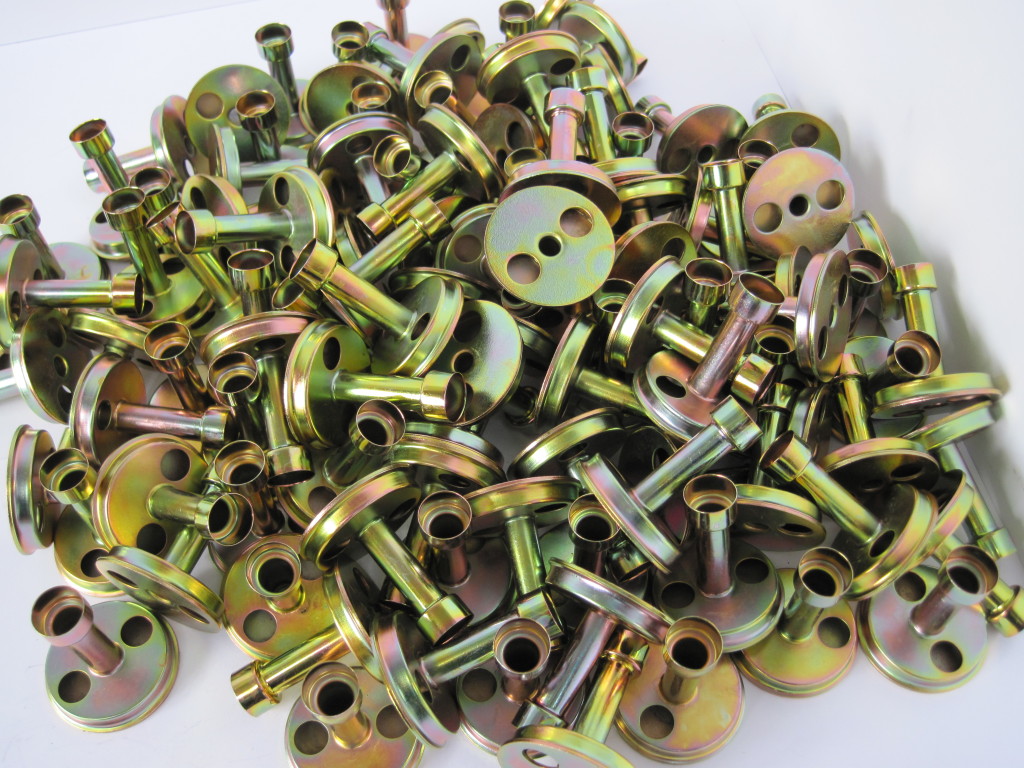

zinc plating


Nickel plating


1. The stability of electroplated nickel layer in air is very high. Due to the strong passivation ability of metallic nickel, an extremely thin passivation film can be quickly formed on the surface, which can resist the corrosion of atmosphere, alkali, and certain acids.


2. Electroplated nickel has extremely small crystals and excellent polishing performance. The polished nickel coating can achieve a mirror like glossy appearance, while maintaining its luster in the atmosphere for a long time. So electroplating layers are often used for decoration.


3. The hardness of nickel plating is relatively high, which can improve the wear resistance of the product surface. In the printing industry, nickel plating is commonly used to improve the hardness of the lead surface. Due to the high chemical stability of nickel metal, some chemical equipment also commonly uses thicker nickel coatings to prevent corrosion by the medium. The nickel plating layer is also widely used in functional aspects, such as repairing worn and corroded parts, and using brush plating technology for local electroplating. Adopting electroforming technology, it is used to manufacture electroformed plates, record molds, and other molds in the printing industry. The thick nickel plating layer has good wear resistance and can be used as a wear-resistant coating. Especially in recent years, composite electroplating has been developed, which can deposit composite nickel coatings containing wear-resistant particles, with higher hardness and wear resistance than nickel coatings. If graphite or fluorinated graphite is used as dispersed particles, the obtained nickel graphite or nickel fluorinated graphite composite coating has good self-lubricating properties and can be used as a lubricating coating. Black nickel coating is also widely used as a coating or decorative coating for optical instruments.


4. Nickel plating has a wide range of applications and can be used as a protective and decorative coating on the surfaces of steel, zinc die castings, aluminum alloys, and copper alloys, protecting the substrate material from corrosion or providing a bright decorative effect; It is also commonly used as an intermediate coating for other coatings, and a thin layer of chromium or a layer of imitation gold is plated on it, which has better corrosion resistance and a more beautiful appearance. In terms of functional applications, nickel plating on parts in special industries is about 1-3mm thick, which can achieve repair purposes. Especially in the manufacturing of continuous casting crystallizers, molds for electronic component surfaces, alloy die-casting molds, complex shaped aerospace engine components, and micro electronic components, their applications are becoming increasingly widespread.

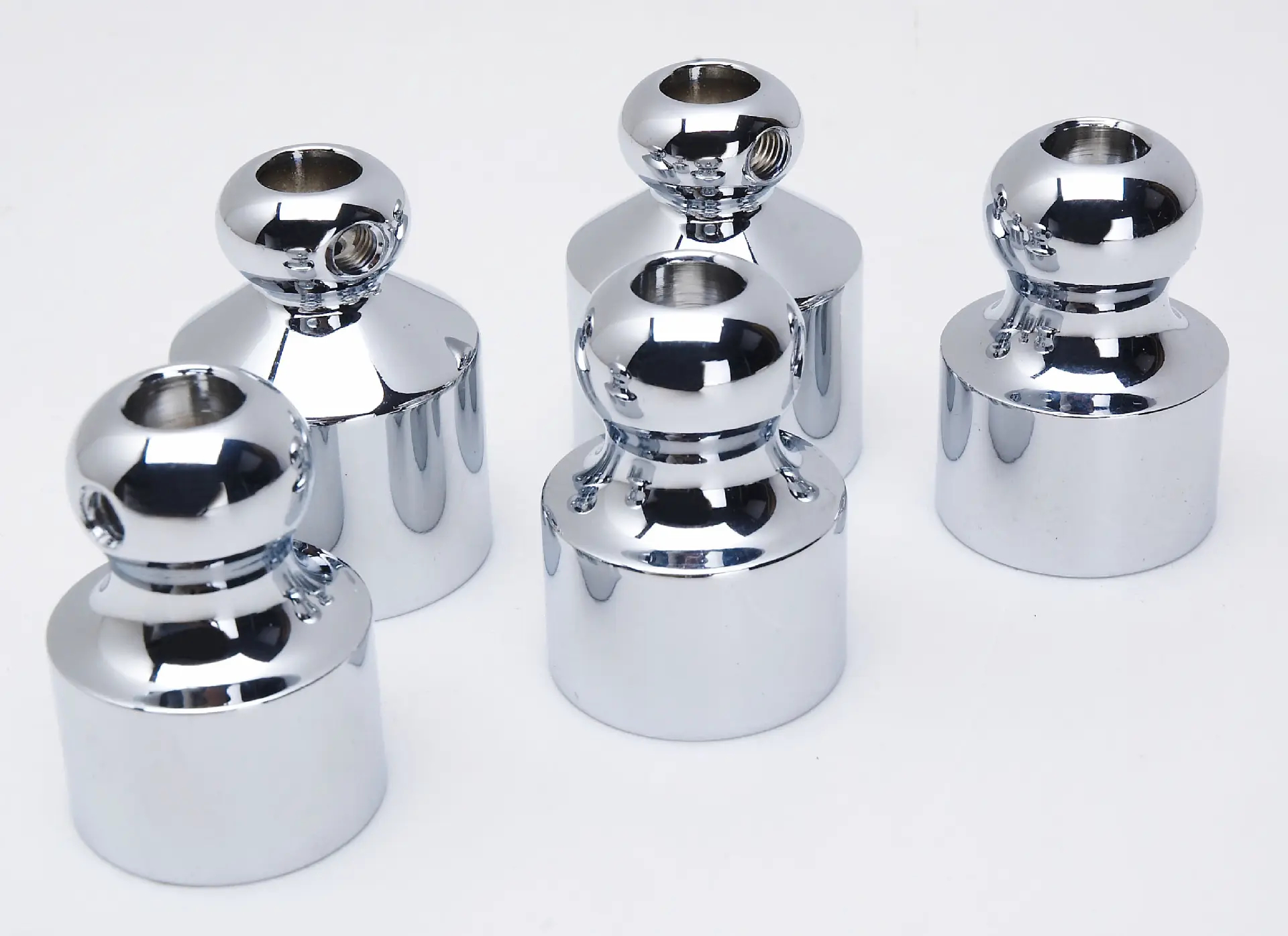

nickel plating


Gold plating


The electroplated gold coating has strong corrosion resistance, good conductivity, is easy to weld, high temperature resistance, and certain wear resistance (such as hard gold mixed with a small amount of other elements), and has good color resistance. At the same time, the gold alloy coating has multiple color tones, and plating gold on silver can prevent color change. And the coating has good ductility and is easy to polish, so it is commonly used as a decorative coating, such as plating jewelry, watch parts, art pieces, etc. It is also widely used in electroplating of precision instruments, printed boards, integrated circuits, electronic tube casings, electrical contacts, and other parts that require long-term stable electrical parameter performance. However, due to the high price of gold, its application is subject to certain limitations. Gold imitation plating is also widely used due to it cost effectiveness and it can reach the color effect.

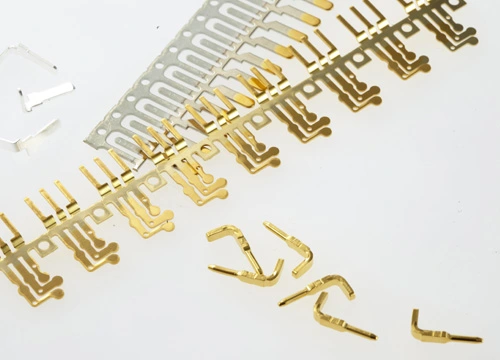

gold plating


Silver plating


This coating is used to prevent corrosion, increase conductivity, reflectivity, and aesthetics. Widely used in the manufacturing industry of electrical appliances, instruments, meters, and lighting fixtures. For example, when silver plating on copper or copper alloy parts, it is necessary to first remove oil and rust; Pre plating a thin layer of silver or immersing it in a solution composed of mercuric chloride, etc., and performing mercury treatment to coat the surface of the workpiece with a layer of mercury film; Then, the workpiece is used as the cathode, and the pure silver plate is used as the anode. It is immersed in a silver potassium cyanide electrolyte composed of silver nitrate and potassium cyanide for electroplating. Industries such as electrical appliances and instruments also use cyanide free silver plating. Electroplating solutions include thiosulfate, sulfite, thiocyanate, ferrocyanide, etc. In order to prevent discoloration of silver plating, post plating treatment is usually required, mainly including brightening, chemical and electrochemical passivation, plating precious or rare metals, or coating with a covering layer.

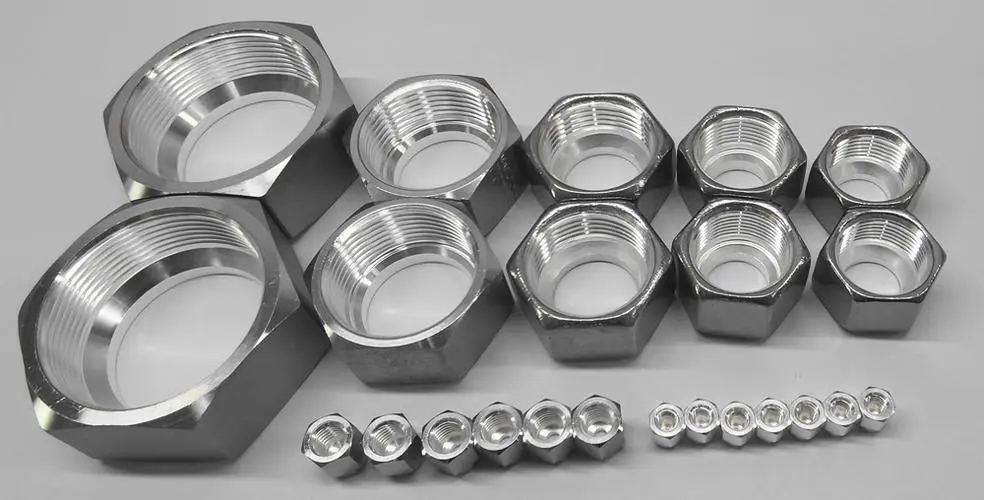

silver plating


What are the methods of electroplating?


Electroplating can be divided into hanging plating, rolling plating, continuous plating, and brush plating, which are mainly related to the size and batch size of the parts to be plated.

Hanging plating is suitable for general sized products, such as car bumpers, bicycle handlebars, etc.

Roll plating is suitable for small parts, fasteners, washers, pins, etc.

Continuous plating is suitable for batch production of wire and strip.

Brush plating is suitable for localized plating or repair.

Electroplating solutions include acidic, alkaline, and acidic and neutral solutions with chromium agents. Regardless of the plating method used, plating tanks, hangers, etc. that come into contact with the products and plating solution to be plated should have a certain degree of universality.
